MC Dropout on MNIST¶
Keep dropout active at inference and average several stochastic forward passes.
from __future__ import annotations
import numpy as np
import torch
from torch import nn
from probly.quantification import quantify
from probly.representer import representer
from probly.transformation import dropout
from probly_benchmark.data import load_mnist
from examples.utils.model import MLPClassifier
from examples.utils.plotting import plot_mnist_uncertainty
Setup¶
Model¶
base_model = MLPClassifier(in_features=28 * 28, hidden_features=256, out_features=10)
dropout_model = dropout(
base_model,
p=0.1, # zeroing probability (kept active at inference)
predictor_type="logit_classifier",
)
Training¶
Standard cross-entropy with mini-batches. Dropout stays active at inference time, which is what enables repeated forward passes to produce a distribution over predictions.
opt = torch.optim.Adam(dropout_model.parameters(), lr=1e-3)
dropout_model.train()
for _epoch in range(10):
correct, total = 0, 0
for X_batch, y_batch in train_loader:
X_flat = X_batch.view(-1, 28 * 28)
opt.zero_grad()
out = dropout_model(X_flat)
nn.functional.cross_entropy(out, y_batch).backward()
opt.step()
correct += (out.detach().argmax(-1) == y_batch).sum().item()
total += len(y_batch)
if correct / total >= 0.97:
break
Uncertainty Quantification¶
dropout_model.eval()
rep = representer(dropout_model, num_samples=100)
with torch.no_grad():
representation = rep.represent(X_test)
uq = quantify(representation)
_total = uq.total
uncertainty = (
_total.detach().numpy() if isinstance(_total, torch.Tensor) else np.asarray(_total)
)
uncertainty = uncertainty / np.log(2)
if uncertainty.ndim > 1:
uncertainty = uncertainty.sum(axis=-1)
Predictions¶
Average softmax probabilities over multiple stochastic forward passes.
Test accuracy: 97.6%

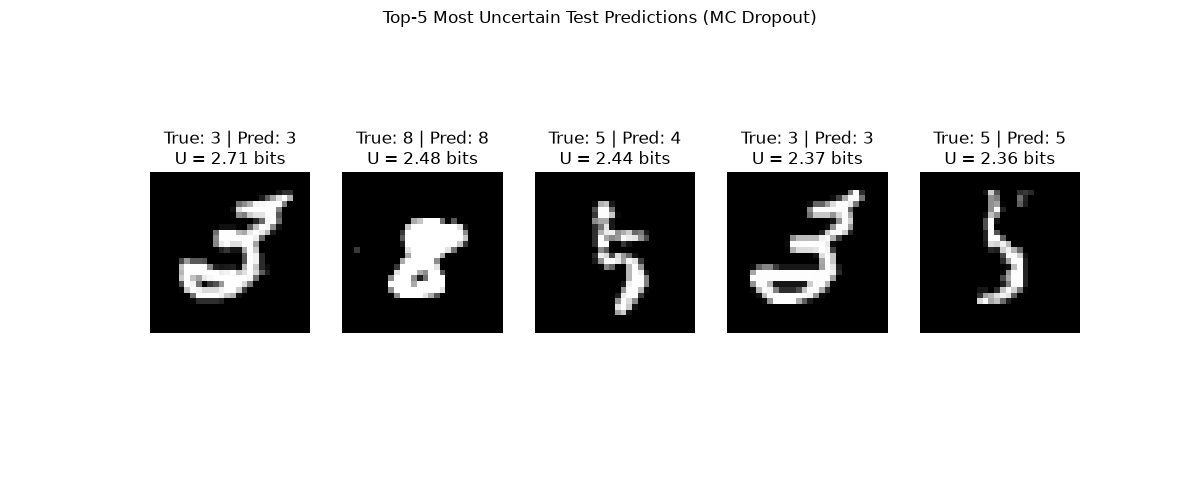

Visualization¶
plot = plot_mnist_uncertainty(
images_test,
y_test,
uncertainty,
mean_probs,
title="Top-5 Most Uncertain Test Predictions (MC Dropout)",
)
plot.show()

Total running time of the script: (0 minutes 43.255 seconds)
