Plotting binary credal sets on an interval¶
The plot_credal_set() function also supports 2-class
(binary) credal sets. Instead of a ternary simplex the plot renders a
horizontal interval on [0, 1] representing P(class 2), with a shaded band
showing the credal set and scatter markers at each member distribution.
The same credal set types are supported:
Singleton – a single point on the line.
Probability intervals – a shaded band between the lower and upper bounds.
Distance-based – a shaded band plus a marker at the nominal distribution.
Convex / Discrete – a shaded band from the minimum to the maximum member probability, with scatter markers for every vertex.
Each batch element is drawn in a distinct colour.
from __future__ import annotations
import matplotlib.pyplot as plt
import numpy as np
from probly.plot import PlotConfig, plot_credal_set
from probly.representation.credal_set import (
create_convex_credal_set,
create_discrete_credal_set,
create_distance_based_credal_set_from_center_and_radius,
create_probability_intervals_from_lower_upper_array,
create_singleton_credal_set,
)
from probly.representation.distribution import create_categorical_distribution
from probly.representation.sample import create_sample
Singleton credal set¶
A single probability distribution per instance, shown as a point on the line.
singleton = create_singleton_credal_set(np.array([[0.3, 0.7], [0.6, 0.4]]))
plot_credal_set(singleton, title="Singleton (binary)")
plt.show()

Probability intervals¶
Per-class lower and upper bounds define a feasible interval on the line.
lower_bounds = np.array([[0.2, 0.4], [0.5, 0.1]])
upper_bounds = np.array([[0.6, 0.8], [0.9, 0.5]])
intervals = create_probability_intervals_from_lower_upper_array(
np.concatenate([lower_bounds, upper_bounds], axis=-1),
)
plot_credal_set(intervals, title="Probability Intervals (binary)")
plt.show()

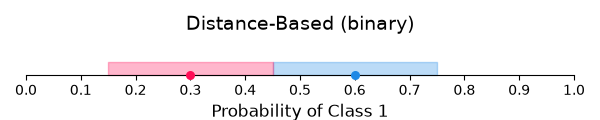

Distance-based credal set¶
A nominal distribution and a radius. The shaded band covers all distributions within total-variation distance; the marker shows the nominal.
distance_based = create_distance_based_credal_set_from_center_and_radius(
create_categorical_distribution(np.array([[0.4, 0.6], [0.7, 0.3]])),
np.array([0.15, 0.15]),
)
plot_credal_set(distance_based, title="Distance-Based (binary)")
plt.show()

Convex credal set¶
Explicit vertex distributions. The band spans from the minimum to the maximum P(class 2) across vertices, with markers at each vertex.
# Each vertex is given for both instances.
vertices = [
create_categorical_distribution(np.array([[0.7, 0.3], [0.4, 0.6]])),
create_categorical_distribution(np.array([[0.2, 0.8], [0.1, 0.9]])),
create_categorical_distribution(np.array([[0.5, 0.5], [0.3, 0.7]])),
]
convex = create_convex_credal_set(create_sample(vertices, sample_axis=0))
plot_credal_set(convex, title="Convex (binary)")
plt.show()

Discrete credal set¶
Like the convex case but represents a finite set of distributions rather than their convex hull.
# Each member is given for both instances.
members = [
create_categorical_distribution(np.array([[0.8, 0.2], [0.6, 0.4]])),
create_categorical_distribution(np.array([[0.3, 0.7], [0.4, 0.6]])),
]
discrete = create_discrete_credal_set(create_sample(members, sample_axis=0))
plot_credal_set(discrete, title="Discrete (binary)")
plt.show()

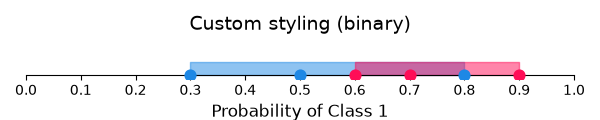

Custom labels and configuration¶
Pass class labels and a PlotConfig to customise the
appearance.
config = PlotConfig(fill_alpha=0.5, line_width=2.5, marker_size=60)
plot_credal_set(
convex,
title="Custom styling (binary)",
labels=["Negative", "Positive"],
config=config,
)
plt.show()

Total running time of the script: (0 minutes 0.525 seconds)
