Het-Net on Two Moons

Het-Net augments a standard classifier with a learnable heteroscedastic noise head that draws Monte Carlo samples in logit space. The representer reuses the same noise mechanism at inference time to estimate per-sample aleatoric uncertainty, which is helpful on data with input-dependent label noise such as this noisy Two Moons setup.

from __future__ import annotations

from sklearn.datasets import make_moons
import torch
import torch.nn.functional as F
import numpy as np

from probly.method.het_net import het_net
from probly.representer import representer

from examples.utils.model import SequentialModel
from examples.utils.plotting import plot_example_uncertainty

Setup

Two Moons with input-dependent (heteroscedastic) Gaussian noise: points further from each class’ core get a larger noise scale, mimicking spatially varying label/observation noise.

X, y = make_moons(n_samples=500, noise=0.0, random_state=0)
rng = np.random.default_rng(0)

noise_scale = np.zeros_like(X[:, 0])

x0 = X[y == 0, 0]
noise_scale[y == 0] = 0.05 + 0.4 * (np.max(x0) - x0) / (np.max(x0) - np.min(x0))

x1 = X[y == 1, 0]
noise_scale[y == 1] = 0.05 + 0.4 * (x1 - np.min(x1)) / (np.max(x1) - np.min(x1))

X += rng.normal(scale=np.expand_dims(noise_scale, 1), size=X.shape)

X_tensor = torch.from_numpy(X).float()
y_tensor = torch.from_numpy(y).long()

Model

Het-Net wraps the backbone with a HeteroscedasticLayer that learns a per-sample noise distribution over the logits. The noise head is co-trained with the backbone and captures input-dependent (aleatoric) uncertainty.

base_model = SequentialModel()
het_net_model = het_net(base_model, num_samples=100, predictor_type="logit_classifier")

Training

The heteroscedastic head draws num_samples noise samples per input in a single vectorized forward pass and returns the log of the averaged probabilities, which cross-entropy turns into the negative log-likelihood.

opt = torch.optim.Adam(het_net_model.parameters(), lr=1e-3)

het_net_model.train()
for _epoch in range(500):
    opt.zero_grad()
    log_probs = het_net_model(X_tensor)
    loss = F.cross_entropy(log_probs, y_tensor)
    loss.backward()
    opt.step()

Uncertainty Evaluation

het_net_model.eval()
rep = representer(het_net_model)

plot = plot_example_uncertainty(X, y, rep, title="HET-Net Predictive Uncertainty", notion="aleatoric")
plot.show()

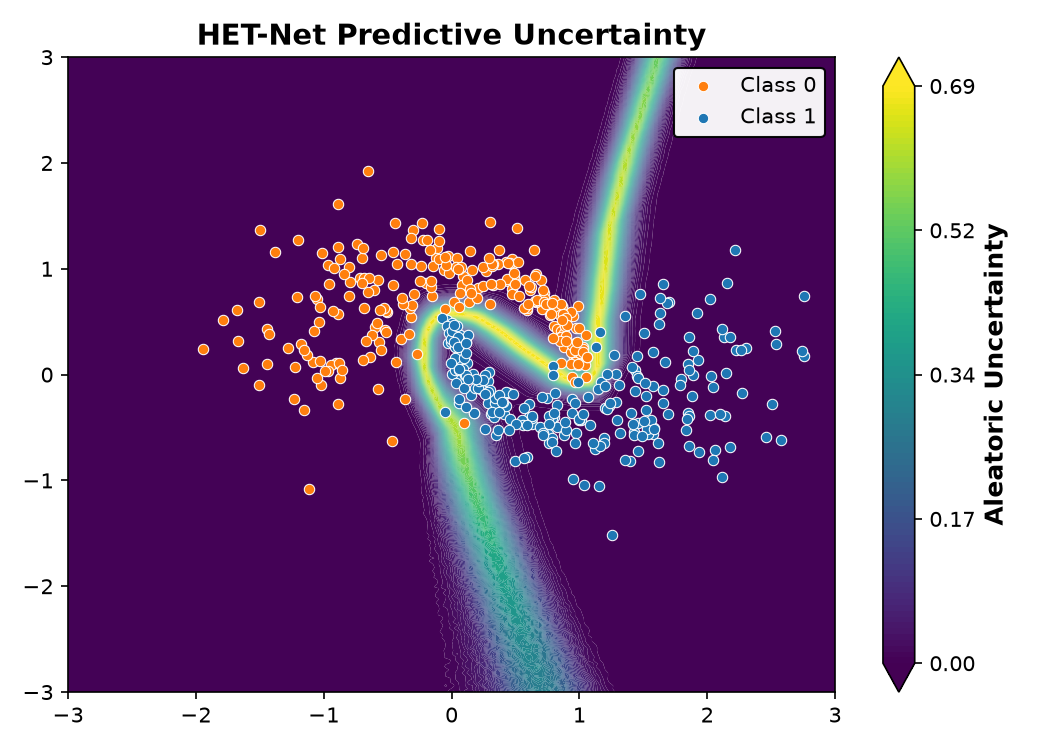

HET-Net Predictive Uncertainty

Total running time of the script: (0 minutes 6.731 seconds)
