Streaming uncertainty with ARFRegressor¶
The same recipe as the classifier example, but now with
ARFRegressor on the Friedman regression stream.
For an ensemble regressor each tree returns a deterministic point prediction, so the ensemble disagreement is the epistemic uncertainty and aleatoric is zero. We plot the running prediction with a band spanning the per-tree spread.
from __future__ import annotations
import matplotlib.pyplot as plt
import numpy as np
from river.datasets import synth
from river.forest import ARFRegressor
from probly.predictor import predict_raw
Build a regression stream and an online ensemble.
N_STEPS = 2500
stream = iter(synth.Friedman(seed=0))
arf = ARFRegressor(n_models=10, seed=0)
# warm up the ensemble so the first per-tree predictions are non-empty
for _ in range(20):
x, y = next(stream)
arf.learn_one(x, y)
mean_pred = np.zeros(N_STEPS)
std_pred = np.zeros(N_STEPS)
truth = np.zeros(N_STEPS)
On each step: read the per-tree predictions via
predict_raw() (one short call), update the
ensemble, and store the spread.

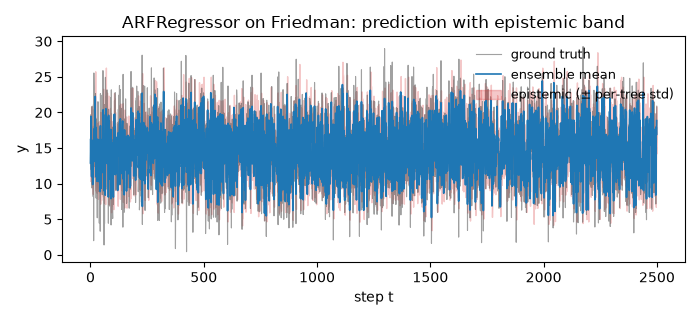

Plot the running prediction with the epistemic band. Early on the trees disagree (large band) because they have seen too few samples; the band tightens as the ensemble learns the function.
steps = np.arange(N_STEPS)
fig, ax = plt.subplots(figsize=(7, 3.2))
ax.plot(steps, truth, color="#444444", lw=0.8, alpha=0.5, label="ground truth")
ax.plot(steps, mean_pred, color="#1f77b4", lw=1.2, label="ensemble mean")
ax.fill_between(
steps,
mean_pred - std_pred,
mean_pred + std_pred,
color="#d62728",
alpha=0.25,
label="epistemic ($\\pm$ per-tree std)",
)
ax.set_xlabel("step t")
ax.set_ylabel("y")
ax.set_title("ARFRegressor on Friedman: prediction with epistemic band")
ax.legend(frameon=False, fontsize=9, loc="upper right")
fig.tight_layout()
plt.show()

findfont: Failed to find font weight 300 for DejaVu Sans, now using 400.
findfont: Failed to find font weight 300 for DejaVu Sans, now using 400.
findfont: Failed to find font weight 300 for STIXGeneral, now using 400.
findfont: Failed to find font weight 300 for STIXGeneral, now using 400.
findfont: Failed to find font weight 300 for STIXNonUnicode, now using 400.
findfont: Failed to find font weight 300 for STIXNonUnicode, now using 400.
findfont: Failed to find font weight 300 for STIXSizeOneSym, now using 400.
findfont: Failed to find font weight 300 for STIXSizeTwoSym, now using 400.
findfont: Failed to find font weight 300 for STIXSizeThreeSym, now using 400.
findfont: Failed to find font weight 300 for STIXSizeFourSym, now using 400.
findfont: Failed to find font weight 300 for STIXSizeFiveSym, now using 400.
findfont: Failed to find font weight 300 for cmmi10, now using 400.
findfont: Failed to find font weight 300 for cmsy10, now using 400.
findfont: Failed to find font weight 300 for cmr10, now using 400.
findfont: Failed to find font weight 300 for cmtt10, now using 400.
findfont: Failed to find font weight 300 for cmti10, now using 400.
findfont: Failed to find font weight 300 for cmb10, now using 400.
findfont: Failed to find font weight 300 for cmss10, now using 400.
findfont: Failed to find font weight 300 for cmex10, now using 400.
findfont: Failed to find font weight 300 for DejaVu Sans, now using 400.
findfont: Failed to find font weight 300 for DejaVu Sans, now using 400.
findfont: Failed to find font weight 300 for DejaVu Sans Mono, now using 400.
findfont: Failed to find font weight 300 for DejaVu Sans Display, now using 400.
Total running time of the script: (0 minutes 5.547 seconds)
