Credal DRO Output Visualization

This example creates an ensemble of standard neural networks on a 3-class classification problem using credal_dro and visualizes the predicted probability intervals (a Probability Intervals Credal Set) for a few test points using a ternary simplex plot.

Unlike credal_wrapper, whose members differ only by random initialization, each credal DRO member is trained with distributionally robust optimization at its own robustness level: member i backpropagates only the worst deltas[i] fraction of the losses in each batch ([WFC+26]).

from __future__ import annotations

import numpy as np
from sklearn.datasets import make_blobs
from sklearn.model_selection import train_test_split
import torch
from torch.utils.data import DataLoader, TensorDataset

from probly.method.credal_dro import credal_dro, credal_dro_deltas
from probly.plot.credal import plot_credal_set
from probly.representer import representer
from probly.losses.torch import cvar_ce_loss

from examples.utils.model import MLPClassifier

np.random.seed(42)
torch.manual_seed(42)

<torch._C.Generator object at 0x7f113d3ff6f0>

Setup

centers = [[-7.0, -4.0], [0.0, 8.0], [7.0, -4.0]]
X, y = make_blobs(n_samples=300, centers=centers, cluster_std=2.0, random_state=42)
X_train, _, y_train, _ = train_test_split(X, y, test_size=0.2, random_state=42)
X_train_tensor = torch.from_numpy(X_train).float()
y_train_tensor = torch.from_numpy(y_train).long()

dataset = TensorDataset(X_train_tensor, y_train_tensor)
dataloader = DataLoader(dataset, batch_size=32, shuffle=True)

Model

Wrap a base classifier with credal_dro: the ensemble structure and the probability-interval representer are the same as for credal_wrapper.

base_model = MLPClassifier(in_features=2, hidden_features=64, out_features=3)
credal_model = credal_dro(
    base_model,
    predictor_type="logit_classifier",
    num_members=5,
)

Training

Train each member with the CVaR cross-entropy at its own level: the levels interpolate uniformly between the global level delta_g and 1, so the last member is a plain ERM model while earlier members focus on ever-smaller fractions of the hardest samples.

deltas = credal_dro_deltas(delta_g=0.5, num_members=5)

for member, delta in zip(credal_model, deltas, strict=True):
    member.train()
    opt = torch.optim.Adam(member.parameters(), lr=1e-2)
    for _epoch in range(1):
        for inputs, targets in dataloader:
            opt.zero_grad()
            logits = member(inputs)
            loss = cvar_ce_loss(logits, targets, delta=delta)
            loss.backward()
            opt.step()
    member.eval()

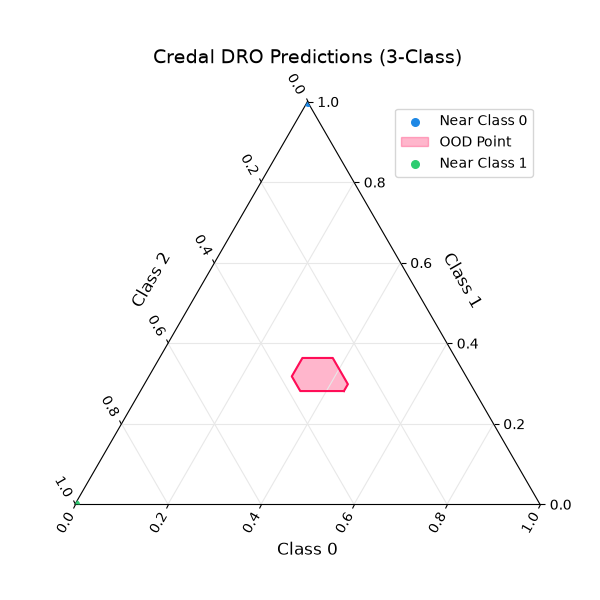

Credal Set Visualization

rep = representer(credal_model)
X_test = torch.tensor([
    [-7.0, -4.0],
    [0.0, 0.0],
    [0.0, 8.0],
])
credal_sets = rep.predict(X_test)

plot = plot_credal_set(
    credal_sets,
    title="Credal DRO Predictions (3-Class)",
    labels=["Class 0", "Class 1", "Class 2"],
    series_labels=["Near Class 0", "OOD Point", "Near Class 1"],
    show=True,
)
