Posterior Network on Two Moons

Output Dirichlet concentration parameters whose evidence comes from normalizing-flow density estimates in a learned latent space. Uncertainty grows with distance from training data, not just near decision boundaries.

from __future__ import annotations

from sklearn.datasets import make_moons
import torch
from torch import nn

from probly.representer import representer
from probly.transformation import posterior_network
from probly.train.evidential.torch import postnet_loss

from examples.utils.model import MLPClassifier
from examples.utils.plotting import plot_example_uncertainty

Setup

X, y = make_moons(n_samples=500, noise=0.05, random_state=0)
X_tensor = torch.from_numpy(X).float()
y_tensor = torch.from_numpy(y).long()

Model

Strip the final classification layer so the normalizing flows receive feature vectors instead of class logits.

class_counts scales flow densities into Dirichlet pseudo-counts: alpha = 1 + exp(log_density) * class_count. Passing 1 (the default) keeps all alphas near 1 regardless of density, making uncertainty meaningless.

base_model = MLPClassifier()
backbone = nn.Sequential(*list(base_model.net)[:-1])
class_counts = [int((y == c).sum()) for c in range(2)]

posterior_network_model = posterior_network(
    backbone,
    latent_dim=6,    # dimension of the normalizing-flow latent space
    num_classes=2,
    num_flows=6,     # number of flow steps per class; more = more expressive density model
    class_counts=class_counts,
    predictor_type="logit_classifier",
)

Training

The model outputs Dirichlet concentration parameters (alpha), not logits. postnet_loss computes the UCE: expected log-likelihood under the Dirichlet. entropy_weight adds a small Dirichlet-entropy term that prevents concentration parameters from collapsing to near-zero early in training.

opt = torch.optim.Adam(posterior_network_model.parameters(), lr=1e-3)

posterior_network_model.train()
for _epoch in range(1000):
    opt.zero_grad()
    alpha = posterior_network_model(X_tensor)
    loss = postnet_loss(alpha, y_tensor, entropy_weight=1e-5)
    loss.backward()
    opt.step()

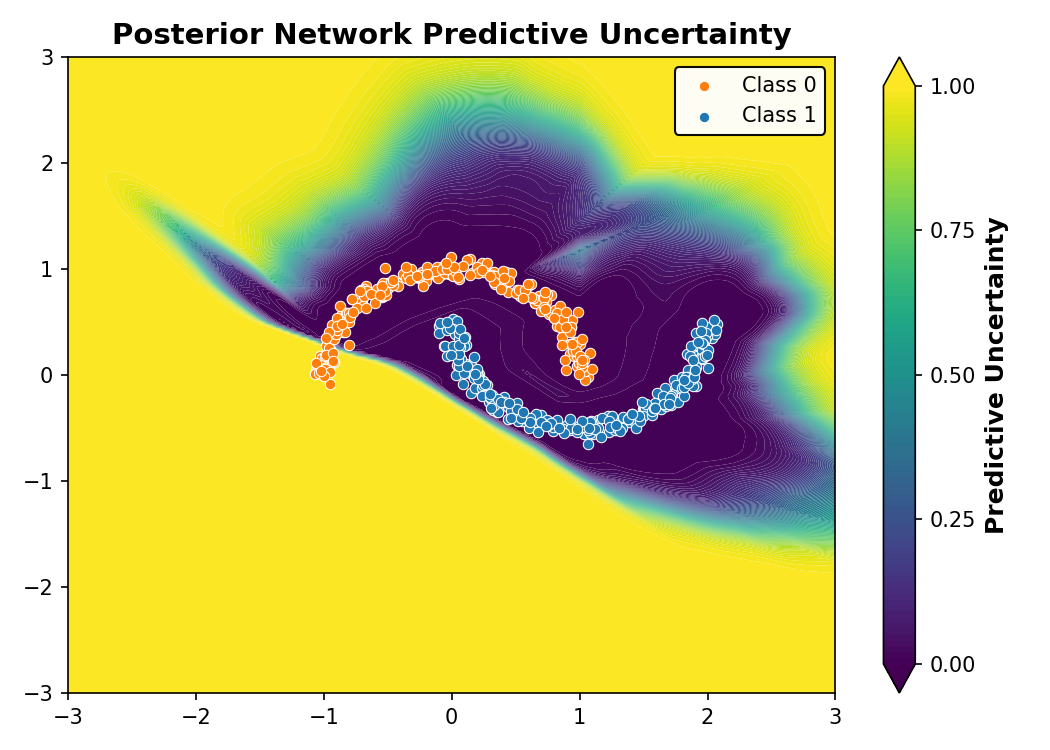

Uncertainty Evaluation

posterior_network_model.eval()
rep = representer(posterior_network_model)

plot = plot_example_uncertainty(X, y, rep, title="Posterior Network Predictive Uncertainty")
plot.show()
