Evidential on MNIST

Evidential Deep Learning replaces the softmax output with a Dirichlet distribution, learning to predict the distribution over class probabilities directly. Uncertainty is high when evidence is spread across many classes or concentrated on a class the model has not seen before.

from __future__ import annotations

import numpy as np
import torch
from torch import nn
from torch.utils.data import DataLoader, TensorDataset

from probly.method.evidential import evidential_classification
from probly.quantification import quantify
from probly.representer import representer
from probly.train.evidential.torch import evidential_log_loss, evidential_kl_divergence
from probly_benchmark.data import load_mnist

from examples.utils.model import MLPClassifier
from examples.utils.plotting import plot_mnist_uncertainty

Setup

train_loader, test_loader = load_mnist(batch_size=256)

X_test_batches, y_test_batches = zip(*test_loader)
X_test = torch.cat([x.view(-1, 28 * 28) for x in X_test_batches])
y_test = torch.cat(list(y_test_batches))
images_test = (X_test.view(-1, 28, 28) * 255).byte()

Model

base_model = MLPClassifier(in_features=28 * 28, hidden_features=256, out_features=10)
evidential_model = evidential_classification(base_model, predictor_type="logit_classifier")

Training

Train using the evidential log-loss, which combines MSE for the evidence and a KL-divergence term to regularize the distribution. The KL-weight is annealed over the first few epochs to allow the model to learn the evidence before enforcing the prior.

X_train_batches, y_train_batches = zip(*train_loader)
X_train_flat = torch.cat([x.view(-1, 28 * 28) for x in X_train_batches])
y_train = torch.cat(list(y_train_batches))

flat_dataloader = DataLoader(
    TensorDataset(X_train_flat, y_train),
    batch_size=256,
    shuffle=True,
)

opt = torch.optim.Adam(evidential_model.parameters(), lr=1e-3)
grad_clip_norm = 0.5

kl_weight = 0.01
annealing_epochs = 2

evidential_model.train()
for epoch in range(5):

    if annealing_epochs == 0:
        lambda_t = kl_weight
    else:
        lambda_t = kl_weight * min(1.0, epoch / annealing_epochs)

    for inputs, targets in flat_dataloader:
        opt.zero_grad()

        alpha = evidential_model(inputs)

        loss_val = evidential_log_loss(alpha, targets) + lambda_t * evidential_kl_divergence(alpha, targets)

        loss_val.backward()

        if grad_clip_norm is not None:
            nn.utils.clip_grad_norm_(evidential_model.parameters(), grad_clip_norm)

        opt.step()

Uncertainty Quantification

evidential_model.eval()
rep = representer(evidential_model, num_samples=200)

with torch.no_grad():
    representation = rep.represent(X_test)

uq = quantify(representation)
_unc = uq.total if hasattr(uq, "total") else (uq.epistemic if hasattr(uq, "epistemic") else uq.aleatoric)
uncertainty = _unc.detach().numpy() if isinstance(_unc, torch.Tensor) else np.asarray(_unc)
uncertainty = uncertainty / np.log(2)
if uncertainty.ndim > 1:
    uncertainty = uncertainty.sum(axis=-1)

Predictions

with torch.no_grad():
    out = evidential_model(X_test)
    logits = out[0] if isinstance(out, tuple) else out
    mean_probs = logits.softmax(-1).numpy()

accuracy = (mean_probs.argmax(-1) == y_test.numpy()).mean() * 100
print(f"Test accuracy: {accuracy:.1f}%")

Test accuracy: 97.7%

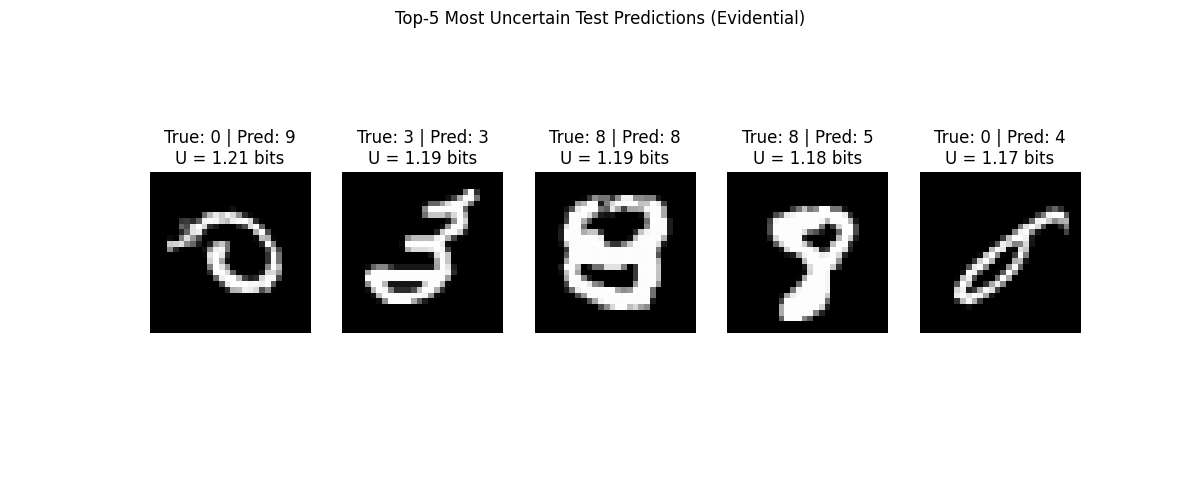

Visualization

plot = plot_mnist_uncertainty(
    images_test,
    y_test,
    uncertainty,
    mean_probs,
    title="Top-5 Most Uncertain Test Predictions (Evidential)",
)
plot.show()
