DUQ on MNIST

Deep Uncertainty Quantification (DUQ) replaces the softmax head with a radial basis function (RBF) network that maps feature representations to per-class centroids. Uncertainty is estimated from the kernel distances between an input’s representation and the learned centroids.

from __future__ import annotations

import numpy as np
import torch
import torch.nn.functional as F
from torch import nn

from probly.method.duq import duq
from probly.quantification import quantify
from probly.representer import representer
from probly_benchmark.data import load_mnist

from examples.utils.model import MLPClassifier
from examples.utils.plotting import plot_mnist_uncertainty

Setup

train_loader, test_loader = load_mnist(batch_size=256)

X_test_batches, y_test_batches = zip(*test_loader)
X_test = torch.cat([x.view(-1, 28 * 28) for x in X_test_batches])
y_test = torch.cat(list(y_test_batches))
images_test = (X_test.view(-1, 28, 28) * 255).byte()

Model

base_model = MLPClassifier(in_features=28 * 28, hidden_features=256, out_features=10)
duq_model = duq(base_model, predictor_type="logit_classifier")

Training

DUQ uses binary cross-entropy on the kernel outputs together with a gradient penalty that enforces a bi-Lipschitz constraint on the feature map.

opt = torch.optim.Adam(duq_model.parameters(), lr=1e-3)
criterion = nn.BCELoss(reduction = "mean")

gradient_penalty = 0.5
num_classes = 10

duq_model.train()
for _epoch in range(5):
    correct, total = 0, 0
    for X_batch, y_batch in train_loader:
        X_flat = X_batch.view(-1, 28 * 28).detach().requires_grad_(True)
        targets_onehot = F.one_hot(y_batch, num_classes).float()


        kernel_values = duq_model(X_flat)
        loss = criterion(kernel_values, targets_onehot)

        gradients = torch.autograd.grad(
            outputs=kernel_values,
            inputs=X_flat,
            grad_outputs=torch.ones_like(kernel_values),
            create_graph=True,
            retain_graph=True,
        )[0]
        grad_norm = gradients.flatten(start_dim=1).norm(2, dim=1)
        duq_penalty = ((grad_norm - 1.0) ** 2).mean()
        total_loss = loss + gradient_penalty * duq_penalty

        opt.zero_grad()
        total_loss.backward()
        opt.step()
        correct += (kernel_values.detach().argmax(-1) == y_batch).sum().item()
        total += len(y_batch)
    if correct / total >= 0.95:
        break

Uncertainty Quantification

duq_model.eval()
rep = representer(duq_model)

with torch.no_grad():
    representation = rep.represent(X_test)

uq = quantify(representation)
_unc = uq.total if hasattr(uq, "total") else (uq.epistemic if hasattr(uq, "epistemic") else uq.aleatoric)
uncertainty = _unc.detach().numpy() if isinstance(_unc, torch.Tensor) else np.asarray(_unc)
uncertainty = uncertainty / np.log(2)
if uncertainty.ndim > 1:
    uncertainty = uncertainty.sum(axis=-1)

Predictions

The DUQ kernel outputs are already in [0, 1] and interpreted as class scores.

with torch.no_grad():
    kernel_values = duq_model(X_test)
    mean_probs = (kernel_values / kernel_values.sum(-1, keepdim=True)).numpy()

accuracy = (mean_probs.argmax(-1) == y_test.numpy()).mean() * 100
print(f"Test accuracy: {accuracy:.1f}%")

Test accuracy: 96.4%

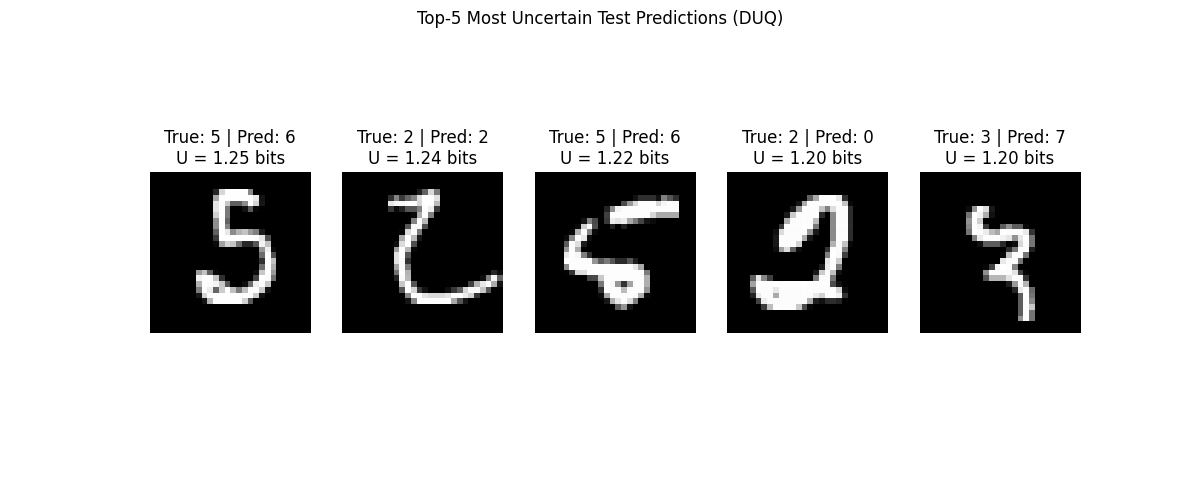

Visualization

plot = plot_mnist_uncertainty(
    images_test,
    y_test,
    uncertainty,
    mean_probs,
    title="Top-5 Most Uncertain Test Predictions (DUQ)",
)
plot.show()
